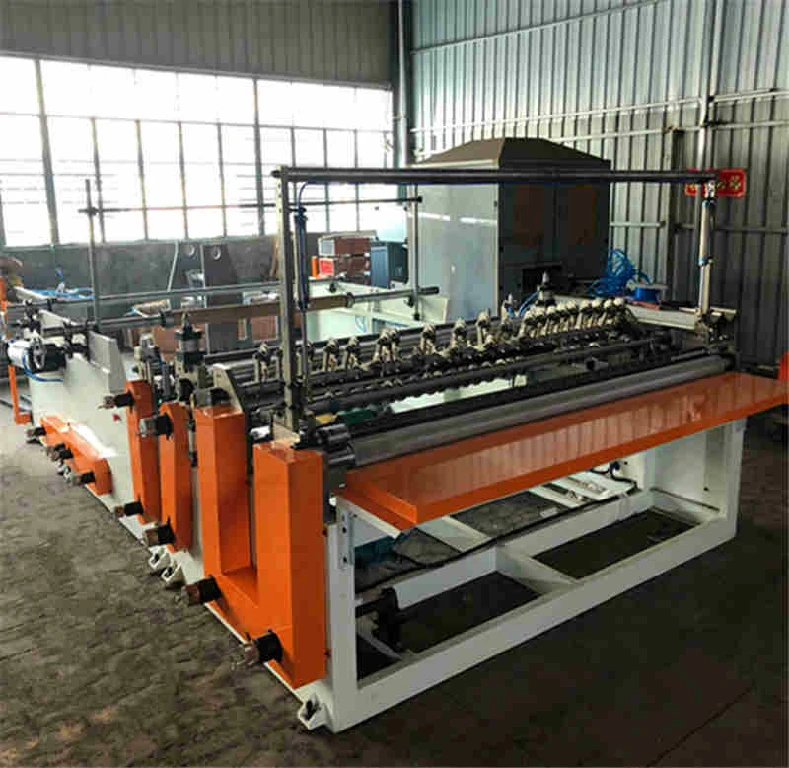

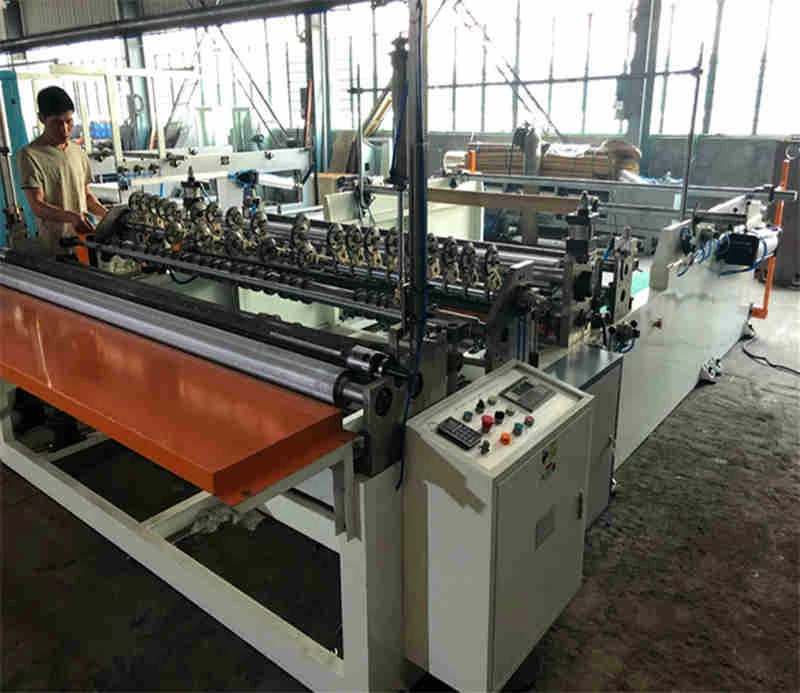

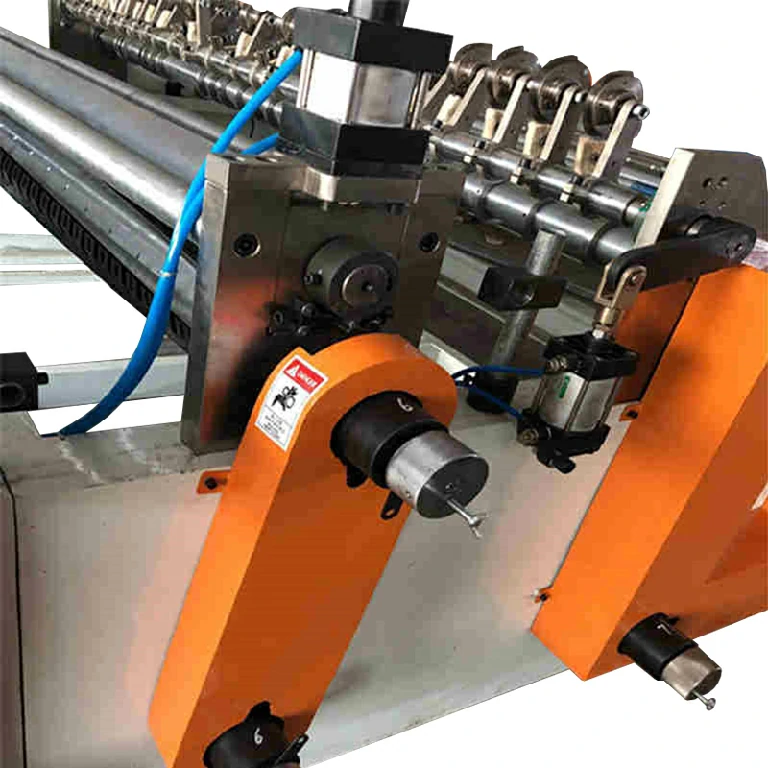

High-Speed 1575mm Jumbo Roll Slitter Rewinder | HX-1575F

High-speed production up to 180 m/min for increased throughput
Optimized 1575 mm width reduces edge waste and improves material utilization
Adjustable perforation range (100–150 mm) for flexible sheet sizing
Integrated embossing system enhances softness and product quality
Stable tension control system ensures smooth operation at high speeds
Rewinding diameter adjustable from 100–300 mm for diverse product needs
Handles jumbo rolls up to 1200 mm diameter for extended continuous production
Heavy-duty structure (2.2 tons) ensures long-term industrial stability

Product Detail

Maximizing Throughput for Commercial Paper Converting

Optimize your medium-to-large scale tissue production with the HX-1575F, a system engineered to master the 1575mm width standard. As a high-performance roll slitter rewinder, it bridges the gap between raw industrial jumbo rolls and premium commercial bath tissue. Its integrated high-speed perforation and automatic slitting modules ensure that every JRT roll produced meets the rigorous softness and tear-resistance standards required by premium hospitality clients.

Advanced Technical Features & System Reliability

Precision 1575mm Web Handling: Optimized for the 1575mm width standard, this model maximizes raw material utilization, reducing edge wastage and increasing the net yield of finished products.
Variable Perforation & Embossing: Equipped with a customizable embossing unit and an adjustable perforating system (100-150mm). This allows for the production of varied textures and sheet lengths to suit regional market preferences.
Stable Tension Control: Utilizing a flat-belt drive system for jumbo roll unwinding and stepless speed regulation, the machine ensures stable paper tension even at peak production speeds of 180m/min.
Flexible Rewinding Diameter: Featuring an air-swelling shaft, the HX-1575F allows operators to adjust the rewinding tightness and achieve a maximum finished product diameter of 300mm.
Industrial Durability: The robust mechanical frame is designed for low vibration and high-speed stability, ensuring clean, precise slitting across every roll.

Technical Specification

Performance Metric	Data Profile
Max Production Speed	130 - 180 m/min
Finished Roll Diameter	100 - 300 mm (Adjustable)
Max Raw Paper Width	1575 mm
Jumbo Roll Diameter	Up to 1200 mm
Perforation Distance	100 - 150 mm (Adjustable)
Power Supply	3KW (380V 50HZ, 3-Phase)
Equipment Weight	Approx. 2.2 Tons
Overall Dimensions	4000mm × 2300mm × 1600mm
