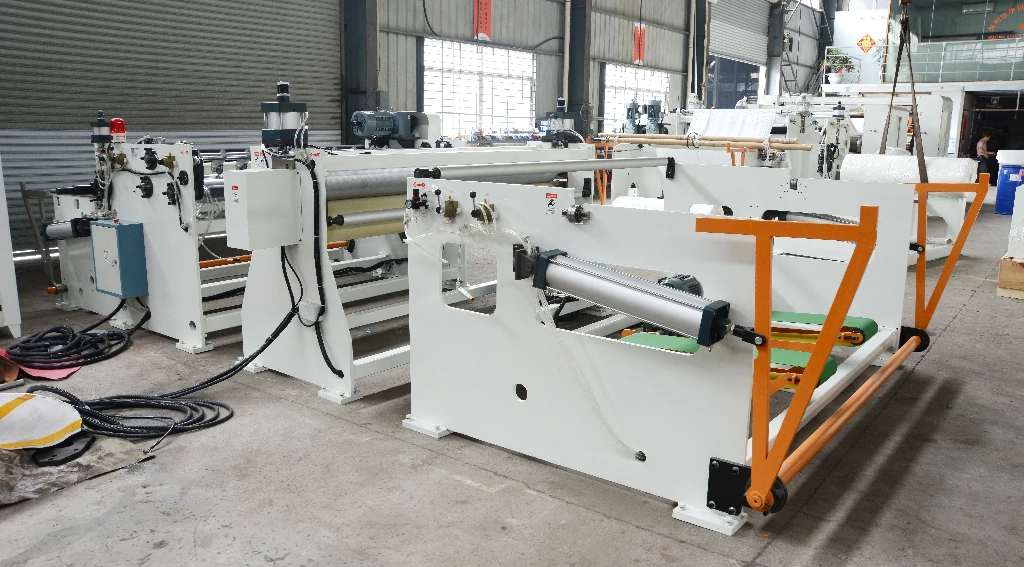

2000mm Composite Material Embossing & Rewinder Slitter Machine | HX-2000CYH-JR

One-stop workflow integrating unwinding, embossing, heating, slitting, and rewinding, improving efficiency by up to 30%
Digital tension control system ensures zero-stretch processing at speeds of 20–150 m/min
Intelligent heated embossing enhances bonding strength and surface texture for multi-layer materials
Servo-driven air shaft rewinding supports adjustable roll tightness with finished diameters up to 1200 mm
Minimum slitting width of 150 mm for flexible product specifications
Pneumatic unloading system enables safe handling of heavy rolls up to 1200 mm diameter
Heavy-duty structure (approx. 8000 kg) ensures stable, long-term industrial operation

Product Detail

Specialized Processing for Medical Hygiene Materials

Precision meets material integrity in the HX-2000CYH-JR, a specialized line designed for the delicate requirements of medical-grade composites. More than just a roll slitter rewinder, this equipment manages the complex bonding of multi-layer non-wovens and films using synchronized heating and digital tension control. It provides a secure, zero-stretch processing environment essential for manufacturing surgical drapes, dental bibs, and other critical healthcare consumables.

Integrated One-Stop Manufacturing Workflow

This equipment is a complete production suite that integrates unwinding, heating, embossing, traction, slitting, and automatic winding into a seamless process. As a highly integrated paper making equipment solution, it allows manufacturers to produce ready-to-use medical rolls—such as surgical bed sheets or dental bibs—in a single pass. This unified workflow significantly reduces contamination risks and operational overhead, making it an essential asset for high-standard hygiene and medical supply facilities.

Advanced Engineering for Medical-Grade Precision

Digital Tension Control: The line features independent motor segments and digital tension management, ensuring zero-stretch processing for sensitive medical non-wovens and films.
Intelligent Embossing & Heating: Equipped with an independently controlled embossing unit with integrated heating. This allows for superior bonding of composite layers while creating a textured surface for better fluid management.
Servo-Driven Air Expansion Winding: Utilizing a central air expansion shaft, the system allows for micro-adjustments in winding tightness, producing finished rolls that are perfectly tensioned for automated packaging.
Automated Pneumatic Unloading: To enhance workplace safety and efficiency, the machine includes a pneumatic unloading system, enabling a single operator to manage heavy finished rolls of up to 1200mm in diameter.

Versatile Industry Applications

Medical Consumables: Production of medical examination table rolls, surgical drapes, and sterilized composite sheets.
Professional Hygiene: High-end dental bibs, waterproof salon sheets, and laminated spa covers.
Specialty Composites: Processing of multi-layer industrial filter media and protective barrier materials.

Technical Specification

Component	Data Profile
Max Production Speed	20 - 150 m/min
Maximum Width of Jumbo Roll	2000 mm
Finished Rewinding Diameter	Max 1200 mm (Adjustable)
Power Configuration	23.77 KW (High-Load Heating & Drive)
Minimum Slitting Width	150 mm
Raw Material Core	76.2 mm (Standard 3-inch)
Total Equipment Weight	Approx. 8,000 kg (Heavy-Duty Stability)

Innovation & Quality by Huaxun Machinery

As a globally recognized napkin machine manufacturers, Huaxun (Fujian) Machinery understands that specialized sectors like the medical industry require unmatched reliability. Our production lines are built with premium-grade steel wallboards and undergo rigorous multi-point quality inspections. We provide global clients with high-ROI machinery, technical consultation, and a resilient supply chain designed to meet the strictest industrial standards.
