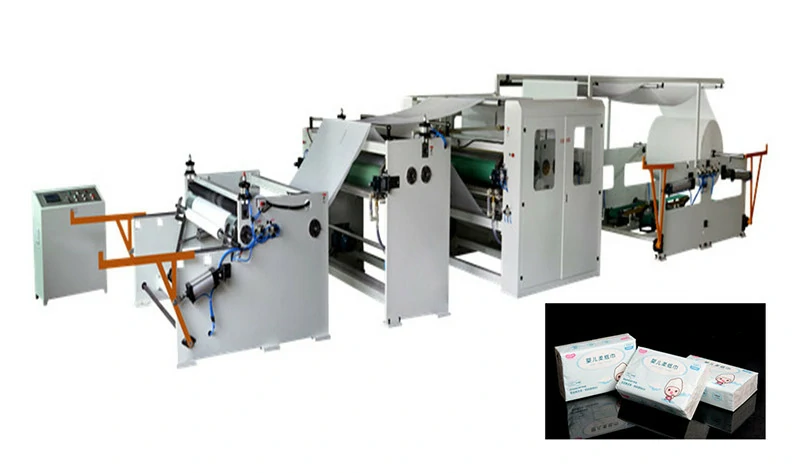

Three-Layer Separate Soft Tissue Paper Lotion Coating Line | HX-2000C

Triple independent coating systems for precise lotion application on each ply
High-speed production at 200–250 m/min (design speed up to 300 m/min)
Supports jumbo roll width up to 2000 mm for large-scale premium output
Synchronized rewinding system ensures perfect ply alignment without delamination
Thermal lotion heating system (1.2 KW) guarantees uniform coating consistency
Suitable for base paper weight of 11.5–19 g/㎡ across three layers
Finished roll diameter range of 500–1000 mm for flexible product formats
Heavy-duty 14-ton structure ensures stable 24/7 industrial production

Product Detail

The Flagship Solution for Ultra-Premium 3-Ply Tissues

To achieve the ultimate level of softness and absorbency, the HX-2000C utilizes a sophisticated three-layer separate coating process. This advanced paper production line enables manufacturers to apply lotion individually to each of the three base paper plies before composite rewinding. By treating each layer independently, the moisturizing agents penetrate deep into the core of the tissue, creating a luxury product that is significantly softer, thicker, and more advanced than standard surface-coated papers.

Advanced Multi-Ply Engineering

Individual Ply Coating Mastery: Equipped with 3 sets of independent coating systems, allowing for precise lotion dosage on each layer or three-layer double-sided coating depending on your product strategy.
Synchronized Composite Rewinding: Driven by independent motors and managed by a centralized PLC, the machine ensures perfectly aligned multi-ply rewinding without tension discrepancies or delamination.
Thermal Lotion Delivery System: Includes a 1.2KW heating unit for the lotion containers to maintain optimal viscosity, ensuring uniform distribution across wide 2000mm sheets even in cooler workshop environments.
Heavy-Duty Industrial Capacity: With an equipment weight of 14 tons and pneumatic lifting stands, this system is built for stable, 24/7 high-volume production of the world’s finest "nose-friendly" tissues.

Technical Specification

Metric	Data Profile
Production Speed	200 - 250 m/min (Design: 300 m/min)
Max Jumbo Roll Width	≤ 2000 mm
Base Paper Weight	11.5 - 19 g/㎡ (Three Layers)
Finished Product Diameter	500 - 1000 mm
Total Power Load	Approx. 17.1 - 21.1 KW
Equipment Weight	Approx. 14 Tons
Overall Dimensions	15300 × 5000 × 2400 mm

Beyond Machinery: Engineering Success with Huaxun

At Huaxun (Fujian) Machinery, we don’t just build equipment; we solve tissue converting challenges. As globally recognized napkin machine manufacturers, our facility integrates advanced CNC precision with a forward-thinking R&D team. We specialize in transforming complex paper processing requirements into streamlined, high-efficiency production lines that empower your brand in the global hygiene market.
