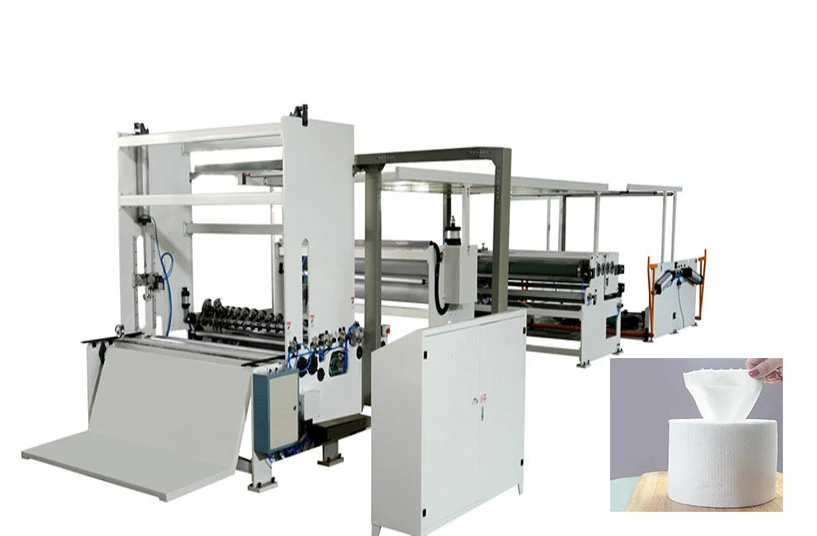

Pure Cotton Cloth Lotion Coating and Embossing Machine | HX-2000WG

Dual coating system with thermal embossing enhances product texture and skincare value
Coating speed of 150–200 m/min and slitting speed up to 300 m/min for flexible production
Supports material width up to 2000 mm for large-scale output
Optimized for 40–80 g/㎡ cotton non-woven fabrics for premium applications
Precision slitting unit ensures clean edges for retail-ready products
Independent motor drive with PLC control ensures stable tension and consistent quality
Multi-mode operation supports coating, embossing, and high-speed slitting
Heavy-duty structure (~7 tons) ensures reliable 24/7 industrial performance

Product Detail

Integrated Innovation for the Premium Skincare & Beauty Market

The HX-2000WG is a specialized production system that merges the worlds of textile finishing and paper converting. As a highly integrated tissue making machine line, it combines precision lotion coating, thermal embossing, and high-speed slitting into a single, seamless workflow. Designed specifically for pure cotton non-woven materials (40-80 g/㎡), this machine is the ultimate solution for producing moisturizing facial dry wipes and professional-grade skincare towels for the luxury beauty industry, ensuring high-efficiency output without compromising the delicate texture required for skincare applications.

Multi-Functional Production Workflow

Dual Coating & Thermal Embossing: Features two sets of coating systems and an integrated heating-embossing unit. This adds decorative texture and functional skincare agents simultaneously, significantly enhancing the shelf appeal of your product.

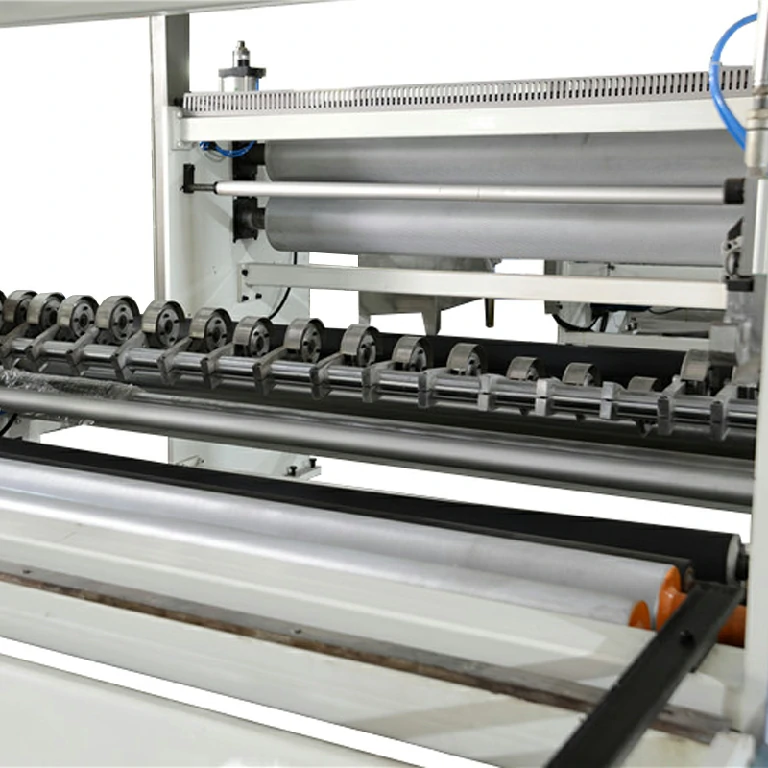

Precision Lengthwise Slitting: Equipped with a professional slitting unit that converts wide 2000mm material into smaller, retail-ready rolls with high-accuracy edges.
Synchronized Independent Drives: The entire machine is built with a wall-type panel frame and driven by independent motors. All tension and speed parameters are managed via an intuitive PLC interface to prevent material stretching.
Versatile Speed Modes: Whether you are focusing on pure slitting (up to 300m/min) or complex embossing and coating (150-200m/min), the system maintains consistent quality across all operation modes.

Technical Specification

Metric	Data Profile
Coating Production Speed	150 - 200 m/min
Pure Slitting Speed	200 - 300 m/min
Embossing Speed	60 - 80 m/min
Max Material Width	≤ 2000 mm
Cotton Material Weight	40 - 80 g/㎡ (Single Layer)
Total Power Load	Approx. 20.1 KW (380V 50HZ)
Equipment Weight	Approx. 7 Tons
Overall Dimensions	14500 × 2600 × 2500 mm

Reliable Converting Solutions Backed by Decades of Expertise

From startup workshops to established industrial plants, Huaxun (Fujian) Machinery provides the technical backbone for your tissue business. We take pride in being napkin machine manufacturers who prioritize the operator's experience—ensuring every machine is simple to maintain and safe to run. Our commitment goes beyond the sale, offering comprehensive technical support and a resilient supply chain that keeps your production running 24/7.
