N-Fold Hand Towel Embossed Laminated Tissue Machine Machine

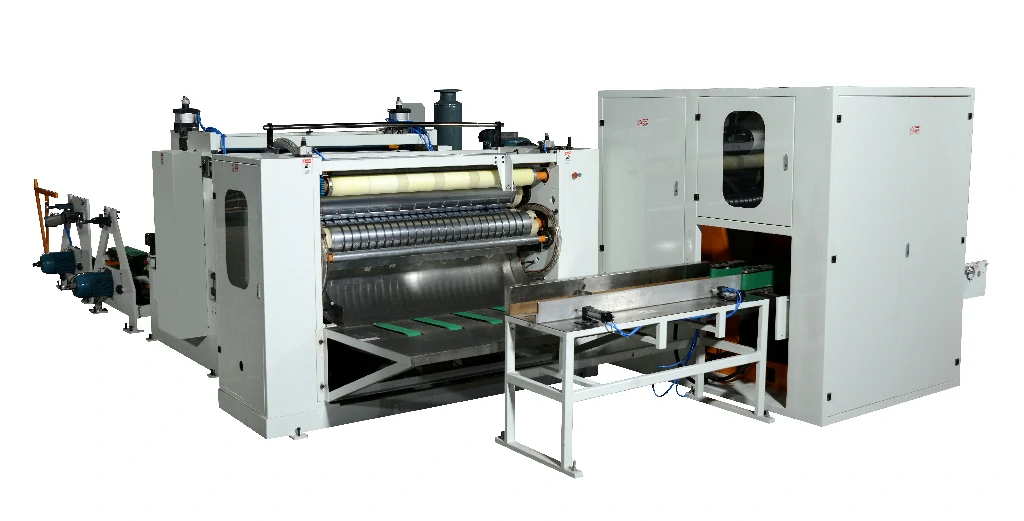

N-Fold Hand Towel Production Line with Integrated Log Saw & Glue Lamination 1400mm | HX-1400 Series

Full Production Line Integration: Folding, lamination, and log saw cutting in one continuous process
1400mm High-Capacity System: Handles wide jumbo rolls for large-scale industrial output
Precision Log Saw Cutting: 80–100 cuts/min with automatic blade grinding for consistent results
Advanced Glue Lamination: Enhances absorbency and product strength for premium applications
PLC Synchronized Control: Ensures stable operation and smooth workflow across all units
Heavy-Duty Industrial Design: Built for 24/7 production with reduced downtime and maintenance

Product Detail

Streamlined Automation: From Jumbo Roll to Finished Stack

The HX-1400 Production Line is the ultimate solution for manufacturers seeking a high-throughput, "one-stop" conversion process. As a sophisticated hand towel machine system, it seamlessly bridges the gap between high-speed folding and final product slitting and cutting. By integrating a heavy-duty glue lamination unit with an automated log saw cutting system, this line ensures that every N-fold towel possesses superior absorbency and precision-cut edges, ready for immediate packaging.

Advanced Engineering for High-Volume Industrial Output

Synchronized 1400mm Lamination & Folding: This high-tier multifold hand towel machine utilizes 1400mm wide rolls to maximize surface efficiency. The integrated gluing unit bonds layers with precision, creating a premium 3D-textured product that meets the highest absorbent standards.

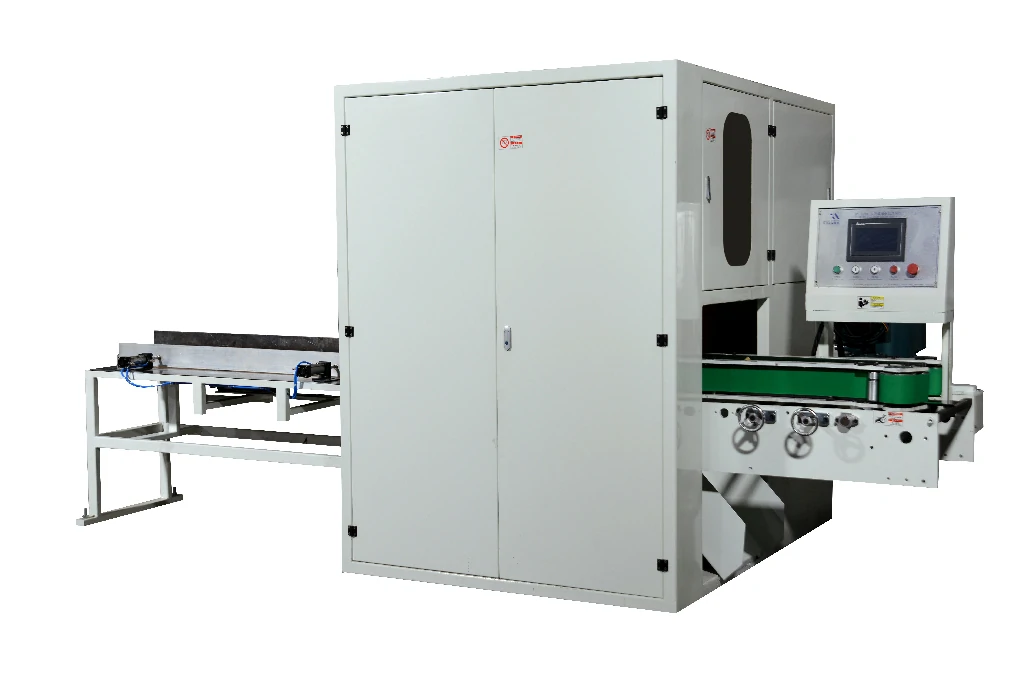

Smart Log Saw Cutting System: The production line is equipped with a heightened version of the log saw cutter, featuring an automatic blade grinding unit and adjustable cutting lengths. It delivers a consistent speed of 80-100 cuts per minute, ensuring the output matches the high velocity of the folding unit.
Precision Segment Drive Control: Utilizing a single motor segment drive, the line’s tension is managed via a centralized PLC. This synchronization between the folder and the log saw reduces mechanical stress and prevents paper tearing during high-speed transitions.
Reliable Vacuum-Assisted Interfolding: A high-capacity Roots vacuum pump provides the necessary suction to maintain perfect alignment of the 1400mm web, resulting in neatly interfolded logs that are ideal for high-speed automated cutting.
Industrial Durability & Maintenance: Engineered for 24/7 operation, the simplified mechanical structure reduces blade wastage and downtime, providing a high-ROI solution for large-scale paper converting facilities.

Technical Specification Matrix

Component	Performance & Technical Data
System Speed	60 - 80 m/min
Log Saw Productivity	80 - 100 cuts/min
Jumbo Roll Compatibility	Width: 1400mm / Diameter: 1400mm
Finished Product Specs	Unfolded: 225mm × 230mm / Folded Width: 77mm
Total Power Load	Main 15.4KW + Vacuum 22KW + Log Saw 8.2KW
Adjustable Range	Customizable Cutting Lengths & Embossing Patterns
Total Weight	Approx. 4.5 Tons
Line Footprint	Approx. 10000mm (Total Integrated Length)

Huaxun Advantage: Global Leader in Paper Engineering

Beyond providing high-quality equipment, Huaxun Machinery is a world-class toilet paper making machine manufacturer dedicated to the long-term success of our clients. With decades of innovation in automated paper converting, we combine manufacturing efficiency with international quality standards. Our mission is to empower global hygiene brands with high-ROI machinery, technical expertise, and a reliable supply chain, keeping your production facility competitive in an evolving industrial landscape.
