High-Efficiency 1380mm N-Fold Hand Towel Production Line with Servo Stacking | HX-1380

Servo Stacking Precision: Triple-axis system ensures 100% accurate bundle counting
High-Speed Performance: Stable 130–160 m/min output for large-scale manufacturing
Advanced Glue Lamination: Enhances absorbency, texture, and product value
Vacuum Interfolding System: Ensures precise folding and smooth paper control
Automated Conveying Integration: Reduces manual handling and improves workflow efficiency
Heavy-Duty Jumbo Roll Handling: Supports large rolls for continuous production

Product Detail

N Fold Machine with Servo Stacking for High-Volume Hygiene Markets

The HX-1380 is a professional-grade hand towel making machine engineered for large-scale manufacturing environments. With its 1380mm web width capacity, this system is optimized to convert single-ply 34-42gsm base paper into high-quality N-fold (interfolded) towels. Delivering a stable production speed of up to 160m/min, the HX-1380 provides a high-ROI solution for suppliers targeting the premium commercial, hospitality, and healthcare sectors.

Advanced Servo Automation & Precision Engineering

Triple-Axis Servo Stacking System: Featuring three independent servo motors, the HX-1380 ensures 100% accurate counting for every bundle (adjustable from 80-300 sheets). Operators can manage stack counts directly via the intuitive touchscreen, ensuring flawless consistency for downstream packaging.

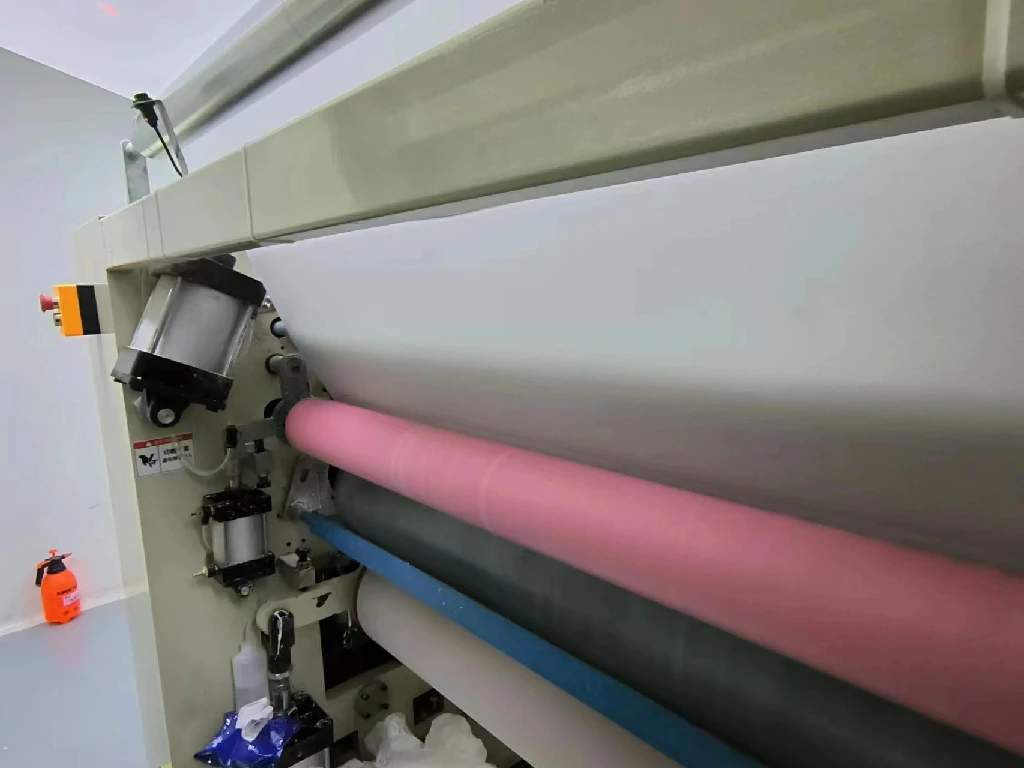

Closed-Type 3-Roll Gluing Lamination: This high-performance paper making machine incorporates a specialized glue lamination unit with laser-engraved rollers. This technology allows for the production of multi-ply towels with enhanced 3D textures, superior water wicking, and a luxurious hand-feel.

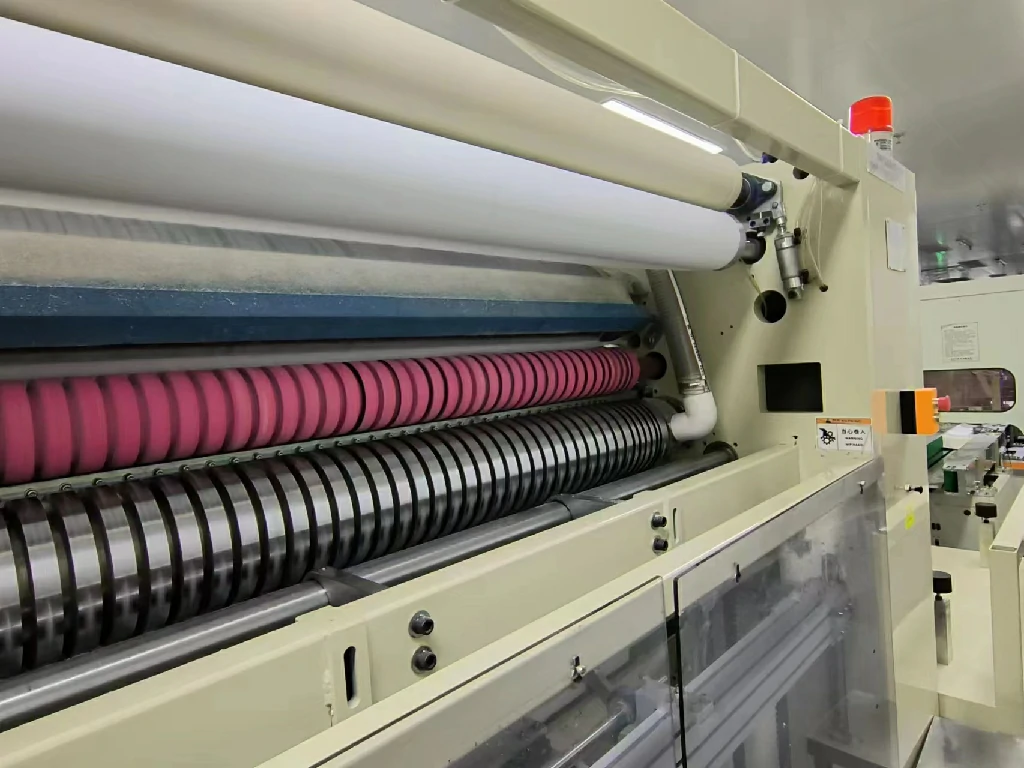

High-Response Vacuum Interfolding: Driven by a powerful 30KW Longtech vacuum pump, the system maintains perfect paper control. The folding rollers are CNC-machined and precision-tempered to meet G3.2 dynamic balance standards, guaranteeing stability and low noise at maximum speeds.

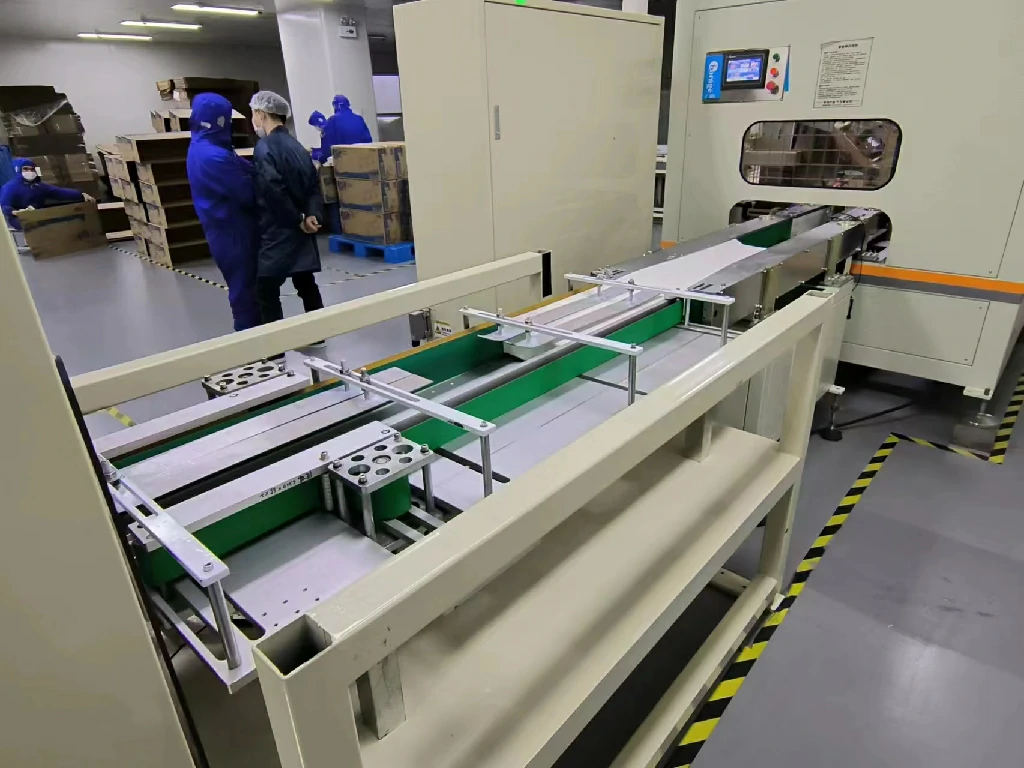

Integrated Automated Conveying & Flipping: The production line includes a 2500mm conveyor and a 90-degree flipping module. This setup automates the transition from folding to slitting, reducing manual handling and maintaining the highest hygiene standards throughout the process.
Heavy-Duty Unwind Architecture: The jumbo roll stand is built for endurance, supporting rolls up to 1500mm in diameter and 1.2 tons in weight. Equipped with pneumatic loading and independent motor drives, it ensures a smooth, uninterrupted supply of raw material.

Technical Specification

Parameter	Technical Data Profile
Stable Production Speed	130 - 160 m/min (Design: 200 m/min)
Jumbo Roll Compatibility	Max Width: 1380mm / Max Diameter: 1500mm
Folding Technology	Vacuum-Assisted N-Fold (Interfolded)
Finished Product Specs	Unfolded: 225mm × 1380mm / Folded: 75mm × 1380mm
Stacking Precision	100% Accuracy (80 - 300 sheets range)
System Power	Main 7.5KW + Vacuum 30KW + Unwind 2.2KW
Total Weight	Approx. 5 - 6 Tons (Integrated Line)
Air Source Requirement	0.6 MPa (Filtered & Dry)

Huaxun Advantage: Global Leader in Paper Engineering

Beyond providing high-quality equipment, Huaxun Machinery is a world-class multifold hand towel machine factory dedicated to the long-term success of our clients. With decades of innovation in automated paper converting, we combine manufacturing efficiency with international quality standards. Our mission is to empower global hygiene brands with high-ROI machinery, technical expertise, and a reliable supply chain, keeping your production facility competitive in an evolving industrial landscape.
