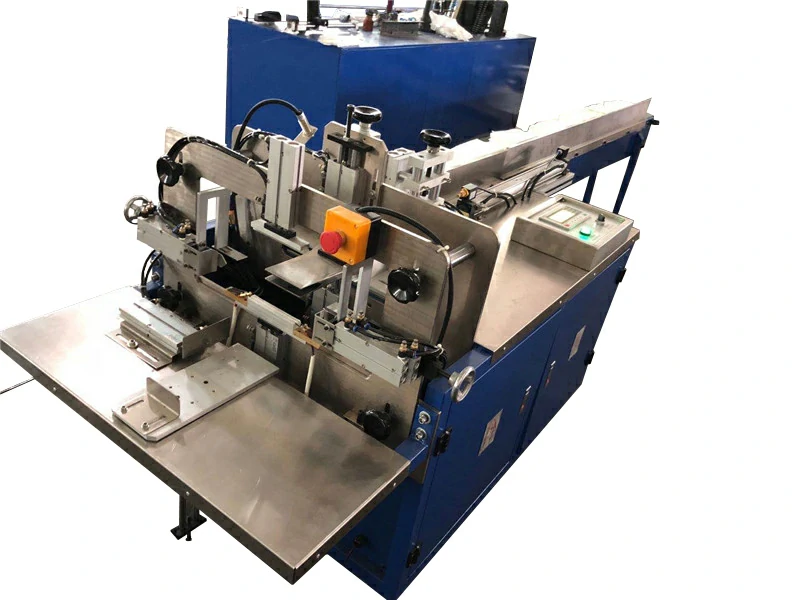

Semi-automatic Facial Tissue Bag Filling and Sealing Machine | HX-08

Packing speed of 8–12 bags/min for stable daily output
Built-in automatic conveying system reduces manual handling and improves workflow
Dual-operator design balances efficiency and labor cost optimization
Precision heat sealing ensures airtight, clean, and durable packaging
Low energy consumption with only 0.4 KW power requirement
Adjustable height range (50–95 mm) for flexible product formats
Compact footprint (1380×800 mm) suitable for limited factory space
Heavy-duty structure (~0.5 tons) ensures stable and reliable operation

Product Detail

Streamlined Operation: High Efficiency for Small-to-Medium Production

The HX-08 is a high-performance, semi-automatic solution specifically engineered for the soft-pack facial tissue industry. By integrating an automatic transmit device, this machine minimizes manual handling, allowing for a seamless transition from the tissue making machine folding stage to the final sealing process. It is the ideal choice for manufacturers looking to balance cost-effectiveness with professional packaging quality.

Key Functional Highlights

1. Integrated Automatic Conveying System

Unlike standard manual sealers, the HX-08 features a built-in automatic transmit device. This system pushes the stacked tissue forward into the polybag automatically, ensuring smooth transition and consistent quality. It is often used as a vital end-of-line component for any compact toilet paper production line.

2. Dual-Operator Optimized Workflow

The machine is designed for a synchronized 2-person workflow:

Operator A: Places the folded paper onto the transmit conveyor.
Operator B: Fits the plastic bag onto the discharge port for final sealing.

This collaborative method ensures a steady output of 8-12 bags per minute.

3. Precision Heat Sealing Technology

Equipped with a stable temperature control system, the HX-08 delivers airtight, clean, and durable seals. This professional finish protects the tissue from moisture and dust while enhancing shelf-ready aesthetics.

4. Industrial-Grade Build & Stability

Weighing approximately 0.5 tons, the machine is constructed with a heavy-duty frame to minimize vibration during operation. Its compact footprint (1380×800mm) makes it suitable for factories with limited floor space.

Technical Specifications

Feature	Data
Packing Speed	8 - 12 bags/minute
Power Supply	220V, 50HZ
Total Power	0.4 KW (Energy Saving)
Air Supply Requirement	0.5 MPA (Self-prepared by client)
Packing Size (L×W)	Fixed: (130-210mm) × (95-100mm)
Height Adjustment (H)	50 - 95mm (Variable range ±10mm)
Machine Weight	Approx. 0.5 Tons
Overall Dimensions	1380 × 800 × 1020mm

Note: Each machine is customized to one specific size (Length and Width are fixed upon order).
