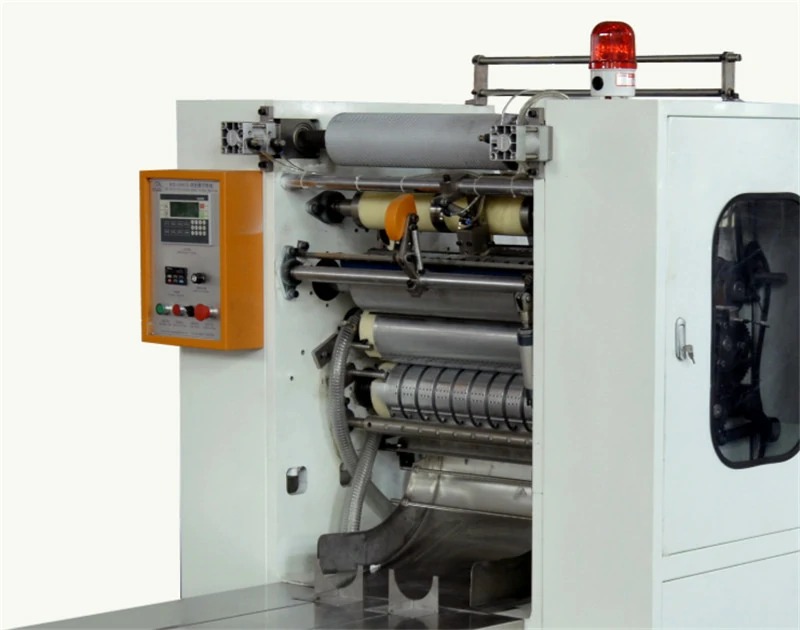

N Fold Hand Towel Machine

Premium N Fold Hand Towel Machine with 3D Gluing Lamination | HX-230/2

  • N-Fold Precision: Produces high-end interfold towels for premium dispensers
  • Dual Embossing Technology: Enhanced texture and bulk for superior hand-feel
  • Color Glue Lamination: Multi-ply bonding with optional colored adhesive for added value
  • High-Speed Output: 750–850 sheets/min for efficient production
  • PLC Smart Automation: Real-time control with accurate counting and easy operation
  • Pneumatic Cutting System: Safe, efficient paper handling with reduced downtime

Product Detail

Unlocking the Potential of High-End Hygiene Markets

In a competitive landscape, product differentiation is key. The HX-230/2 is a specialized hand towel making machine designed to produce premium N-fold (Z-fold) towels that stand out on retail shelves. By utilizing sophisticated 3D embossing and color-glue lamination, this equipment transforms standard tissue into high-value, multi-functional cleaning solutions for the luxury hospitality and medical sectors.

Double-Embossing Technology for Superior Texture

  • Dual Embossing Units: Unlike standard folders, this machine is equipped with two individual embossing units, allowing for more complex and defined textures that significantly improve the towel's "hand-feel" and bulk.

  • Synchronous Precision Drive: Built as a high-performance tissue making machine, it features a synchronous belt transmission system that ensures zero-slip operation and ultra-low noise levels even during peak production.

  • Advanced Color Glue Lamination: The integrated gluing unit enables the bonding of multiple plies with optional colored adhesives, drastically increasing water absorbency while adding a distinctive aesthetic appeal to the finished product.

  • Automated Pneumatic Systems: Features intelligent pneumatic cutting and blade separation, which simplifies the paper-threading process and minimizes risk during machine stops.

  • Smart PLC Interface: The entire production cycle is managed by a high-response PLC system with electronic counting, providing operators with real-time data and precise control over folding accuracy.

N Fold Hand Towel Machine

Technical Specification

Performance Metric Data Profile
Production Output 750 - 850 sheets/min
Output Configuration 2 Lines High-Performance Output
Unfolded Dimensions 230mm × 230mm (Customizable)
Embossing Style Steel to Rubber (Customizable Patterns)
Jumbo Roll Compatibility Max Diameter: 1200mm / Width: 460mm
Energy Consumption 10KW (380V 50HZ)
Structural Weight Approx. 2 Tons
Machine Footprint 4500mm × 1480mm × 2000mm

Manufacturing Excellence: About Huaxun Machinery

Huaxun Machinery is a globally recognized manufacturer specializing in the R&D of automated paper converting solutions. With a focus on durability and technical innovation, we have established ourselves as a premier factory for international clients seeking reliable industrial equipment. Our engineering team is dedicated to providing high-ROI machinery that complies with international standards, ensuring your facility remains at the forefront of the paper industry.

Tag：Multifold Hand Towel Machine
