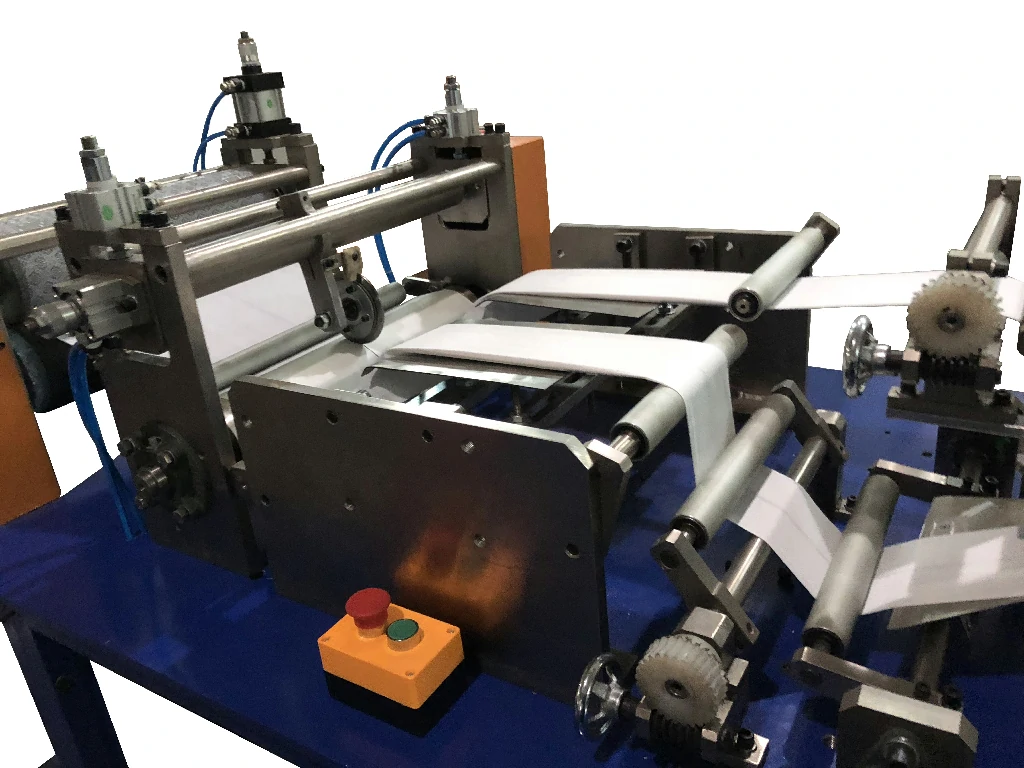

Napkin Tissue Paper Making Machine Dual-Output High-Speed Folder | HX-280-DL

Ultra-High-Speed Output: 1600 pcs/min double-layer production for maximum efficiency
Double-Layer Processing System: Doubles output without increasing factory footprint
Precision Folding Accuracy: ±1mm control with advanced guide system for consistent quality
Pneumatic Automation System: Automatic loading and knife sharpening for continuous operation
Double Triangle Folding Design: Produces crisp 140mm × 140mm finished napkins
Stable Industrial Performance: Frequency conversion motor ensures smooth and energy-efficient operation

Product Detail

Double the Output, Half the Effort

The HX-280-DL represents the next generation of high-speed tissue conversion. Engineered for the popular 280mm format, this machine utilizes a sophisticated double-layer output system to achieve a massive production capacity of 1600 pieces per minute. With advanced pneumatic material loading and a specialized "double triangle" folding logic, the HX-280-DL is designed for high-volume factories that require maximum throughput with minimal manual intervention.

Advanced Engineering & Technical Highlights

Ultra-High Speed 1600 pcs/min: By processing two layers of paper simultaneously, this machine doubles your efficiency without increasing your floor space footprint. It is the perfect solution for rapidly fulfilling large-scale catering and retail orders.
Pneumatic Loading & Sharpening: Equipped with a pneumatic loading system to handle jumbo rolls up to 560mm wide with ease. Additionally, the cutting knives feature pneumatic sharpening, ensuring a clean, burr-free cut consistently throughout long production runs.
Precision Aluminum Alloy Guide System: The guide pipes are constructed from high-grade aluminum alloy to ensure perfect concentricity, resulting in a folding accuracy of ±1mm. This level of precision is critical for maintaining high-quality standards at 1600 pcs/min.
Advanced "Double Triangle" 1/4 Folding: Specialized folding geometry provides a crisp, professional square finish (140mm x 140mm), ideal for the international 280mm napkin market.
Integrated Paper Breakdown Device: Positioned between the embossing and forming units, this specialized device ensures smooth material flow and prevents jams, allowing the paper making machine to maintain peak velocity.
Frequency Conversion Control: Powered by a 3KW frequency conversion motor, allowing for precise speed control and reduced energy consumption while maintaining high torque for the napkin manufacturing machine.

Strategic Market Applications

High-Volume Retail Packs: Mass-producing 280mm napkins for supermarket "value packs" and high-turnover consumer goods.
Regional Fast Food Chains: Providing a steady supply of 1/4 fold napkins for quick-service restaurants and café franchises.
Contract Manufacturing: Leveraging the 1600 pcs/min speed to handle overflow orders and large-scale private label contracts.

Main Technical Parameters

Feature	Specification
Max Production Speed	1600 pieces / minute (Double Layer)
Unfolded Product Size	280mm × 280mm
Folded Product Size	140mm × 140mm (±1mm)
Folding Logic	Double Triangle 1/4 Folding
Jumbo Roll Specification	≤ 560mm Width / ≤ 1200mm Diameter
Pneumatic System	Material Loading & Knife Sharpening
Output Component	Double Layer Stainless Steel Holder
Main Motor	3KW (380V 50Hz) Frequency Conversion

Huaxun Precision Promise

At Huaxun, we focus on the details that drive your bottom line. The HX-280-DL combines the durability of stainless steel components with the intelligence of pneumatic automation. As a leading napkin making machine manufacturer, we ensure that every machine is built to maintain its concentricity and speed over millions of cycles. Maximize your industrial efficiency with the dual-output power of Huaxun.
