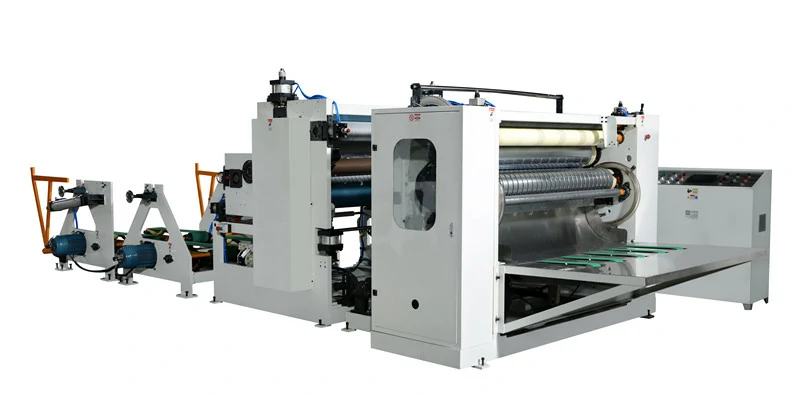

N-Fold Hand Towel Embossed Laminated Tissue Machine Machine

N-Fold Hand Towel Embossed Laminated Hand Towel Machine 1400mm | HX-1400 Series

Wide 1400mm Production Capacity: Ideal for large-scale tissue converting operations
Advanced Glue Lamination System: Multi-ply bonding for enhanced strength and absorbency
Precision Embossing Technology: Steel-to-rubber embossing for deep, premium textures
Vacuum-Assisted Folding: Ensures consistent interfolding and neat stacking
PLC Controlled Drive System: Accurate tension control with low noise and maintenance
Heavy-Duty Industrial Design: Built for continuous, high-volume production stability

Product Detail

Industrial-Scale Production for Premium Laminated Hygiene Products

The HX-1400 represents a significant leap in production scale, featuring a robust 1400mm width capacity that makes it a cornerstone for large-scale hand towel making machine facilities. This model is engineered to produce high-end N-fold towels with integrated glue lamination, ensuring superior absorbency and a plush hand-feel. By combining stable vacuum adsorption with precision interfolding, the HX-1400 delivers neatly stacked, high-quality towels that meet the rigorous standards of global commercial markets.

Elite Technical Performance & System Stability

Advanced Glue Lamination Integration: This high-performance paper making machine features a professional-grade gluing unit, allowing for the production of multi-ply towels with enhanced structural integrity and maximum liquid retention.
Single Motor Segment Drive: To ensure peak operational efficiency, the machine utilizes a segment drive system. Tension control is precisely managed via the PLC, resulting in accurate transmission speeds, lower maintenance, and significantly reduced mechanical noise.
Precision Steel-to-Rubber Embossing: Equipped with a pneumatic embossing unit that can be customized with various patterns. The steel-to-rubber configuration provides deep, vivid textures that elevate the aesthetic and tactile value of the finished product.
Optimized Vacuum Adsorption: Utilizing a high-capacity Roots vacuum pump, the system maintains flawless paper control during the folding process, guaranteeing consistent product quality even at speeds of up to 80 meters per minute.
Low-Wastage Pneumatic Cutting: The streamlined pneumatic cutting structure is designed for accuracy and longevity, minimizing blade wear and reducing the total cost of ownership for high-volume manufacturers.

Technical Specification

Performance Metric	Data Profile
Operational Speed	60 - 80 m/min
Jumbo Roll Compatibility	Max Width: 1400mm / Max Diameter: 1400mm
Raw Material Inner Core	76.2 mm (3 inch)
Unfolded Product Size	225mm (W) × 230mm (L)
Folded Product Size	225mm (W) × 77mm (± 2mm)
Base Paper Grammage	20 - 40 g/㎡
System Power Configuration	Main 15.4KW + Roots Vacuum Pump 22KW
Equipment Weight	Approx. 2.5 Tons
Overall Dimensions	7000mm × 3000mm × 2000mm

Huaxun Advantage: Global Leader in Paper Engineering

Beyond providing high-quality equipment, Huaxun Machinery is a world-class paper towel machine factory dedicated to the long-term success of our clients. With decades of innovation in automated paper converting, we combine manufacturing efficiency with international quality standards. Our mission is to empower global hygiene brands with high-ROI machinery, technical expertise, and a reliable supply chain, keeping your production facility competitive in an evolving industrial landscape.
