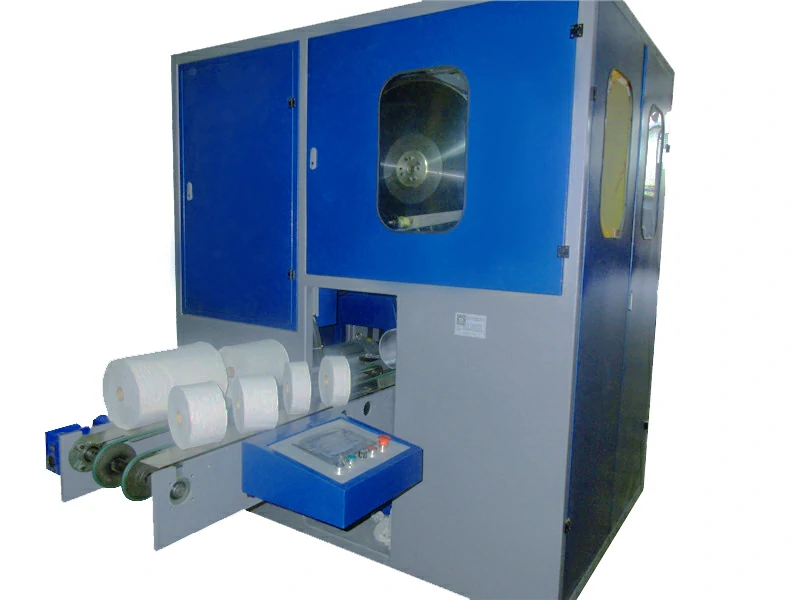

High-Speed Single Lane Maxi Roll Tissue Log Saw Cutting Machine | HX-SC4

Designed for large log diameters from 150–270 mm (up to 300 mm customizable)
Production speed of 25–60 cuts/min for efficient heavy-duty converting
High-precision PLC control system ensures consistent cutting accuracy
Flexible cutting length range from 60–300 mm for customized roll sizes
Equipped with 810 mm TKM orbital blade for powerful, clean, lint-free cutting
Automatic blade sharpening system extends tool life and maintains cutting quality
Smart head trimming (≥25 mm) reduces waste and improves finished roll edges
Heavy-duty structure (~4 tons) ensures stability during large-roll processing

Product Detail

Master the Challenge of Large-Diameter Industrial Roll Cutting

The production of high-capacity industrial rolls requires a specialized cutting approach that standard slicers cannot provide. This Single Lane Maxi Roll Log Saw is a heavy-duty roll slitter rewinder component engineered specifically for large-diameter products like Maxi rolls (up to 270mm-300mm). By utilizing a massive orbital blade and intelligent PLC positioning, it ensures that even the densest industrial paper logs are converted into precision-cut, professional-grade rolls with a smooth, lint-free finish.

Automated Precision & Operational Intelligence

PLC-Driven Workflow: The entire cutting cycle—including automatic resetting, log pushing, and slicing—is managed by a programmable logic controller. This minimizes manual intervention and ensures consistent roll widths across the entire production batch.
Touch-Screen HMI Integration: Equipped with an intuitive man-machine touch screen, operators can monitor and adjust all parameters (cutting length, speed, and diameter) in real-time, making the equipment remarkably simple to operate even for new staff.
Smart Material Optimization: The system features an automatic "head-check" function that executes a precision trim (minimum 25mm) on the log ends. This ensures clean edges for every finished roll while keeping material waste to an absolute minimum.
TKM Blade & Auto-Sharpening: To handle heavy-duty cutting, the machine uses a premium 810mm TKM orbital blade. The integrated automatic sharpening system maintains a razor-sharp edge during operation, ensuring high grinding precision and extending the tool's lifespan.
Comprehensive Safety Interlocks: Safety is prioritized with a side-door protection system. The machine triggers an instantaneous automatic stop if any side door is opened during the production process, protecting your workforce from high-speed moving parts.

Target Industry Applications

Industrial Maxi Rolls: High-speed slicing of large-diameter (130mm-270mm) paper logs for factory and commercial dispensers. This unit is the ideal finishing partner for an automatic slitter rewinder, ensuring that oversized logs are converted into professional-grade commercial rolls with clean, vertical edges.
Institutional Hygiene Supply: Perfect for producing bulk kitchen towels and oversized bath tissues for the catering and hospitality sectors.
Customized Industrial Wiping: Flexible adjustment for non-standard cutting lengths (60mm-300mm) to meet specialized industrial wiping requirements across various manufacturing sectors.

Technical Specification

Metric	Data Profile
Production Speed	25 - 60 cuts/min
Log Diameter Range	150 - 270 mm (300mm Customizable)
Cutting Length Range	60 - 300 mm
Blade Brand & Size	TKM Brand, Diameter 810 mm
Total Power Load	Approx. 6.77 KW (380V 50HZ)
Equipment Weight	Approx. 4 Tons
Overall Dimensions	7100mm × 2250mm × 2600mm

Huaxun Machinery: Your Strategic Paper Converting Partner

As a premier paper slitting machine manufacturer, Huaxun (Fujian) Machinery is dedicated to the R&D and manufacturing of high-end household paper equipment. Our facility combines precision CNC engineering with decades of industry expertise to deliver high-ROI solutions for the global hygiene market.
