Heating Embossing & Glue Lamination Toilet Paper Rewinder Machine for Nonwoven Lazy Rags | HX-2000B Series

High-Performance Multi-Fiber Production: Handles paper (13–40 g/㎡) and nonwoven fabrics for versatile product lines.
Advanced Heating Embossing: 16KW steel-to-steel unit ensures permanent, high-definition patterns and superior fabric bonding.
Precision Control: Independent motor drives with PLC and HMI allow fine tension adjustments for different materials.
High-Speed & Stable Operation: Lamination at 150–200 m/min, Lazy Rag thermal bonding at 60–80 m/min.
Heavy-Duty Stability: 8.2-ton reinforced frame absorbs vibration, ensuring consistent perforation and log quality.
Custom Jumbo Roll Support: Width up to 2170mm (customizable up to 2850mm) with automated tail trimming and discharge.

Product Detail

Product Description

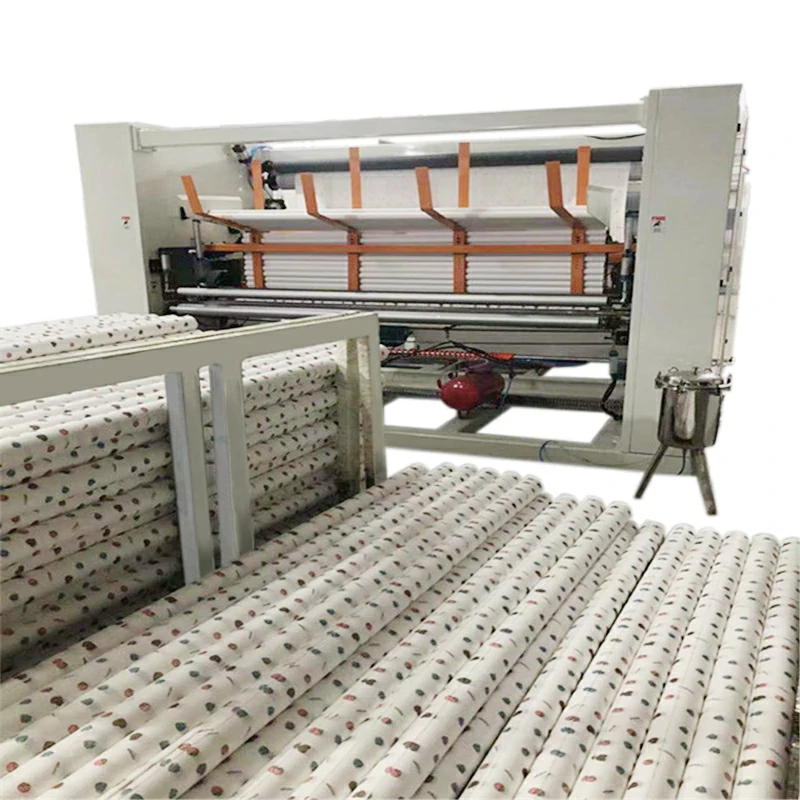

The HX-2200B Multi-Fiber Series is a high-performance, versatile converting platform designed for the booming reusable cleaning cloth market. Beyond standard tissue paper, this machine is specifically engineered to handle Nonwoven fabrics and Hybrid fibers. Featuring advanced Steel-to-Steel Heating Embossing Technology, it ensures permanent, high-definition patterns and superior fabric bonding, making it the definitive choice for producing professional-grade "Lazy Rags" and industrial wipes.

Core Advantages

Advanced Heating Technology: Equipped with a specialized 16KW heating unit for steel-to-steel embossing, essential for setting patterns in synthetic and nonwoven fibers that standard cold embossing cannot handle.
Multi-Material Compatibility: Seamlessly switch between wood pulp paper (13-40 gsm) and nonwoven fabrics. One machine, two profitable product lines.
Precision Independent Drives: Adopts a separate motor drive system and PLC control, allowing for ultra-fine tension adjustments via the HMI screen to accommodate different material elasticity.
Dual-Process Integration: Combines Glue Lamination for plush kitchen towels and Thermal Bonding for durable cleaning rags in a single production flow.
Heavy-Duty Stability: At 8.2 tons, the reinforced frame absorbs micro-vibrations during high-speed heating and embossing, ensuring consistent perforation and log quality.

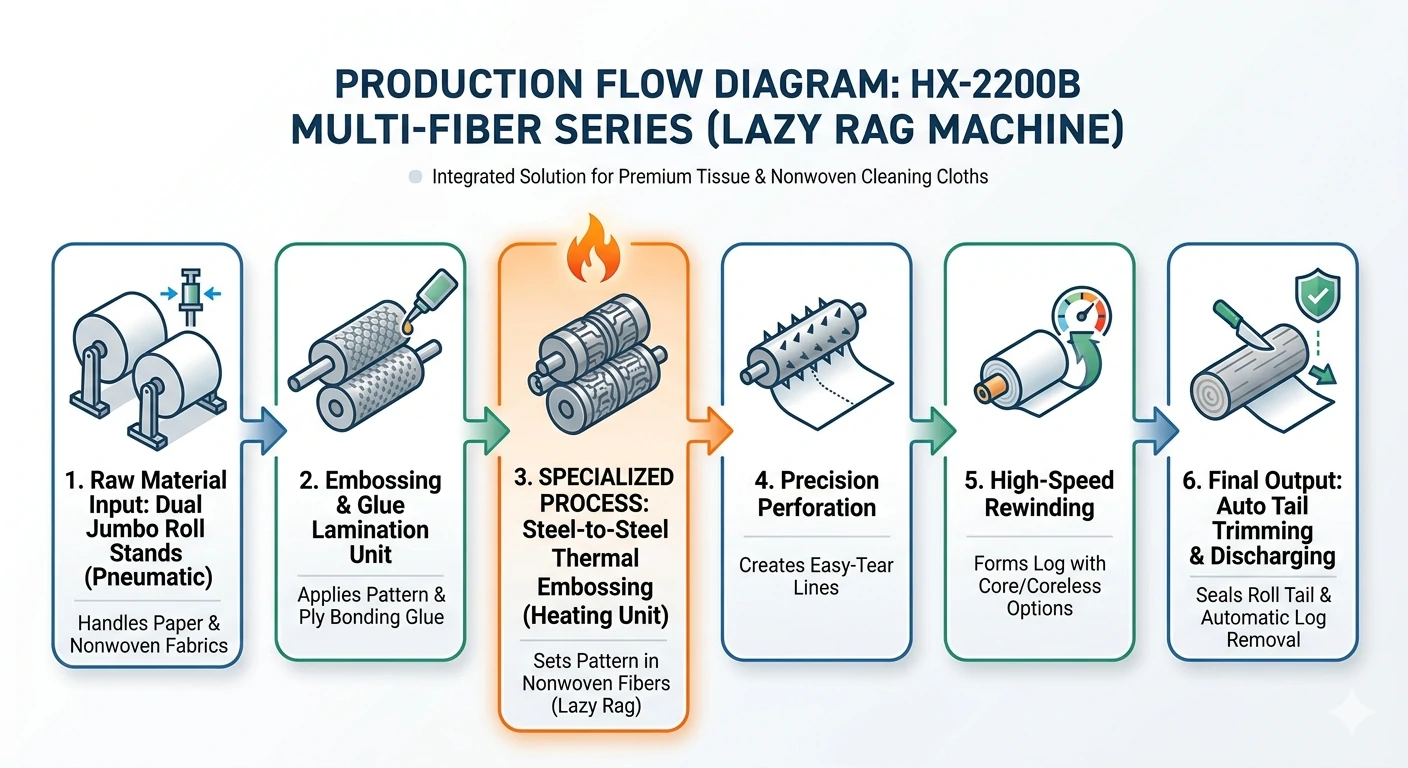

Specialized Production Process

Dual Jumbo Roll Stands (Pneumatic) ➔ Embossing & Glue Lamination Unit ➔ Steel-to-Steel Thermal Embossing (Heating Unit) ➔ Precision Perforation ➔ High-Speed Rewinding ➔ Auto Tail Trimming & Discharging.

Technical Specifications

Feature	Specifications
Model	HX-2200B (Multi-Fiber)
Stable Speed (Lamination)	150 - 200 m/min
Stable Speed (Lazy Rag)	60 - 80 m/min (Optimized for Thermal Bonding)
Embossing System	Steel-to-Steel with 16KW Heating System
Jumbo Roll Width	2170 mm (Customizable up to 2850 mm)
Material Range	13 g/㎡ - 40 g/㎡ (Paper & Nonwoven)
Total Power	27.1 KW + 16 KW (Heating)
Machine Weight	Approx. 8.2 Tons

Explore our toilet paper production line.

Commercial Information

FOB Port: Xiamen, China
Lead Time: 75 - 90 Days (Including thermal calibration and testing)
Market Suitability: Reusable Kitchen Wipes, Industrial Cleaning Cloths, Premium Laminated Towels.
Service Assurance: Specialized training on heating temperature control and material tension management provided.

Innovating with Huaxun Machinery

For over 20 years, Huaxun has been at the forefront of the household paper industry. The HX-2200B is designed to help clients diversify their product portfolios and stay ahead in the evolving market. With our advanced heating embossing technology, you gain the competitive edge to lead in the “Lazy Rag” segment. Discover more about our tissue making machine solutions and how they can enhance your production capabilities.
