Full-Automatic Toilet Paper Making Machine HX-2800B Series

Full-Automatic Toilet Paper Making Machine Series High-Efficiency Integrated System | HX-2800B Series

  • High-Capacity Production: Handles jumbo rolls up to 2800mm, increasing output and reducing downtime.
  • One-Person Operation: Fully automated line allows 1 operator to manage rewinding, storage, and cutting.
  • Intelligent Log Storage: High-capacity rack holds 80 logs, ensuring continuous production flow.
  • Precision Cutting: Dual-channel log saw achieves up to 60 cuts/min, producing clean, retail-ready rolls.
  • Labor & Cost Efficiency: Reduces manpower needs by 50%+, maximizing factory productivity.

Product Detail

Product Description

The HX-2800B Integrated Series is a heavy-duty, high-capacity production line engineered for industrial-scale tissue converters. Featuring an ultra-wide 2800mm jumbo roll compatibility, this line seamlessly integrates rewinding, log storage, and precision cutting. With advanced PLC automation, the entire process—from massive jumbo rolls to finished retail-ready logs—requires only one operator, significantly reducing labor costs while maximizing output.

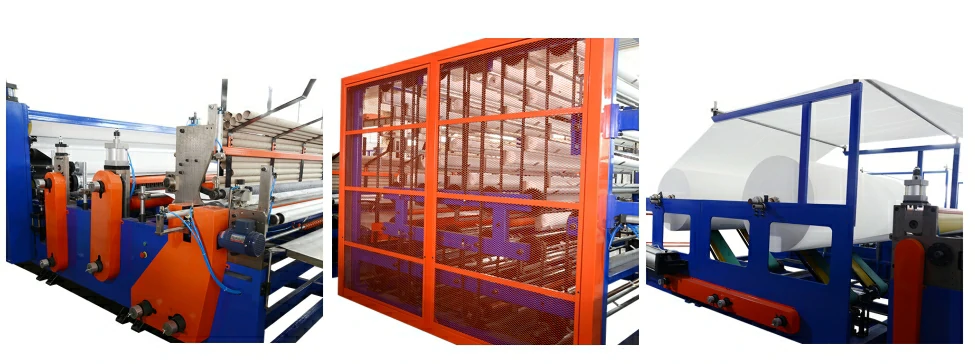

Full-Automatic Toilet Paper Making Machine HX-2800B Series

Core Advantages

  • Maximum Scale Efficiency: The 2800mm width allows for larger master rolls, reducing downtime for roll changes and increasing total tonnage output.

  • One-Person Operation: A fully synchronized system where rewinding, storage, and cutting communicate via a central PLC, allowing a single technician to manage the entire line.

  • Dual-Product Versatility: Effortlessly switch between producing core and coreless toilet rolls or high-density kitchen towels.

  • Intelligent Log Storage: Includes a high-capacity storage rack (80 logs) that acts as a buffer between rewinding and cutting, ensuring 24/7 continuous production flow.

  • Precision Tension Control: Pneumatic loading and advanced tension sensors ensure that even thin 19g/m² paper is processed without tearing or wrinkling.

Full-Automatic Toilet Paper Making Machine HX-2800B Series

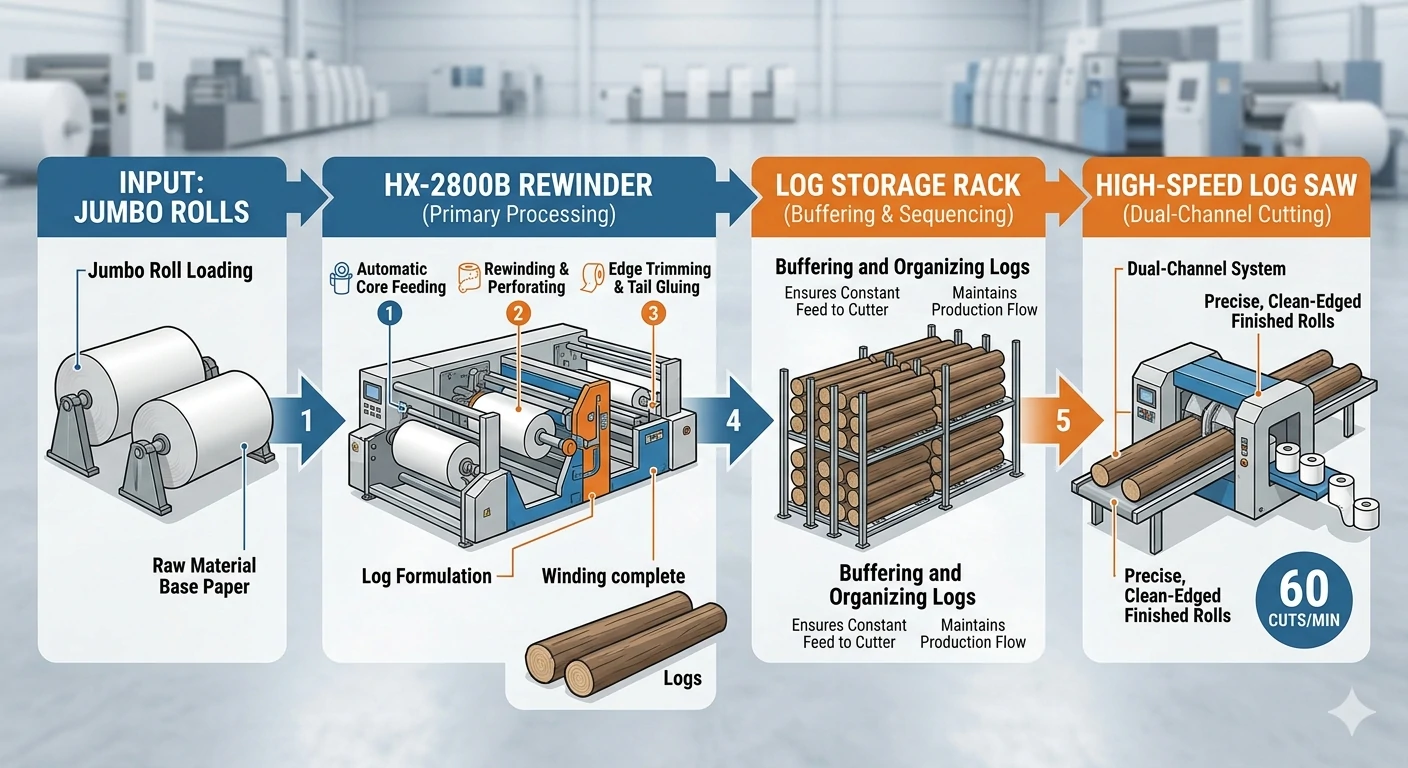

Integrated Production Workflow

  1. HX-2800B Rewinder: Automatic core feeding, rewinding, edge trimming, and tail gluing.

  2. Log Storage Rack: Buffering and organizing logs to ensure constant feed to the cutter.

  3. High-Speed Log Saw: Dual-channel cutting for precise, clean-edged finished rolls at 60 cuts/min.

Full-Automatic Toilet Paper Making Machine Production Workflow

Technical Specifications

HX-2800B Rewinding Unit

Feature Specifications
Max Jumbo Roll Width 2800 mm (Industrial Standard)
Production Speed 100 - 180 m/min
Paper Compatibility Single ply 19g/m² (or customized)
Rewinding Logic Intelligent "Tight-to-Loose" Tension Control
Total Power 15.4 KW

Automatic Log Storage Rack

Feature Specifications
Effective Capacity 80 Logs (Ensures Zero-Downtime)
Log Length/Diameter 2800 mm / Φ100-130 mm
Power 4.4 KW

Automatic Log Saw Cutting Machine

Feature Specifications
Cutting Capacity 2 Rolls per time (Dual Channel)
Speed 30 - 60 cuts/min
Machine Weight 3.5 Tons (Heavy-duty stability)

Explore more toilet paper making machine.

Commercial Information

  • FOB Port: Xiamen, China

  • Manufacturing Lead Time: 75 - 90 Days (Customized to your voltage and embossing requirements)

  • Payment: T/T, Western Union, PayPal

  • Key Advantage: Full technician support for overseas installation and factory layout planning.

Huaxun Assurance

With over 20 years of focus on tissue converting technology, Huaxun Machinery is a trusted toilet paper machine supplier for industrial manufacturers worldwide. Our HX-2800B line represents the perfect balance of massive capacity and precision engineering, designed to keep your factory running at peak performance.

Scale Up Your Production Today. Contact our engineering team for a full factory layout design!
