Automatic Toilet Paper Rewinding Production Line | HX-2000B Series

Efficient Production: Speeds of 60–80 m/min for small to medium factories.
Large Roll Capacity: Handles jumbo rolls up to 2000mm wide × 1200mm diameter.
Automated Workflow: Integrates rewinding, embossing, perforating, and tail sealing in one line.
Smart Control: PLC system with HMI interface and automatic stop on paper break reduces waste.
Precision Rewinding: Adjustable tightness ensures high-quality finished rolls (100–130mm diameter).
Durable Components: High-quality bearings and electrical parts for long service life.
User-Friendly Operation: Pneumatic jumbo roll loading, automatic roll change, and tail cutting streamline work.

Product Detail

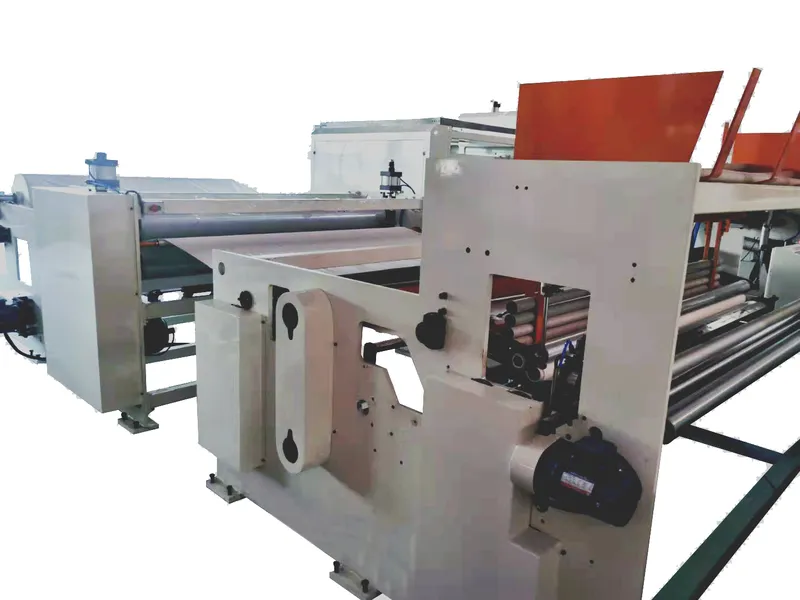

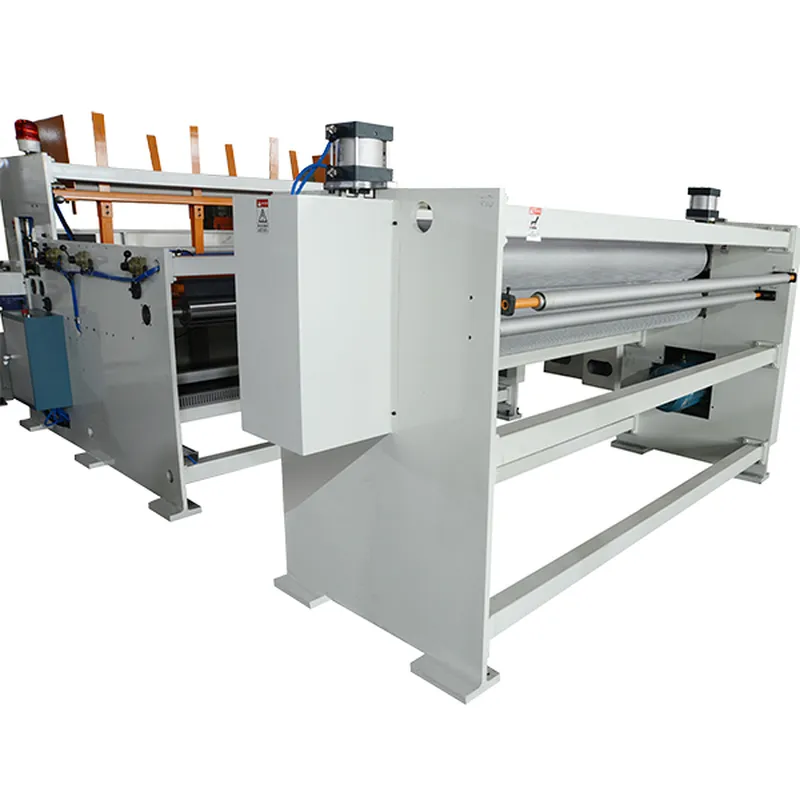

Automatic Toilet Paper Rewinding Machine Overview

HX-2000B Automatic Toilet Paper Rewinding Production Line is a cost-effective and stable solution designed for small to medium tissue manufacturers. It integrates rewinding, embossing, perforating, and tail sealing into a single streamlined process, ensuring efficient and reliable production.

HX-2000B Model Key Features

PLC control system with frequency speed regulation for stable operation
User-friendly HMI interface for easy control and monitoring
Automatic stop when paper breaks to reduce waste
Pneumatic jumbo roll loading with tension control
Adjustable rewinding tightness (tight core + loose outer layer)
Automatic roll changing, tail cutting, and finished log unloading
High-quality bearings and electrical components for long service life

Production Process

Jumbo Roll Stand → Embossing Unit → Compressing Unit → Perforating Unit → Rewinding Unit → Tail Trimming

Technical Parameters

Production Speed: 60–80 m/min
Jumbo Roll Width: 2000 mm
Jumbo Roll Diameter: 1200 mm
Finished Roll Diameter: 100–130 mm
Paper Specification:
- 2-ply: 13–20 g/m²
- 1-ply: 20–40 g/m²
Power: 10.3 KW
Machine Size: 7200 × 2650 × 1900 mm

Toilet Paper Production Line Selection Recommendations

We offer a variety of toilet paper machine models and configurations. Contact us for more information. Please contact us for more information.

Model	Position	Speed	Target Customer
HX-2000B	Entry-level	60–80 m/min	Small & medium factories
HX-2100H	High-end	150–200 m/min	Large-scale manufacturers
