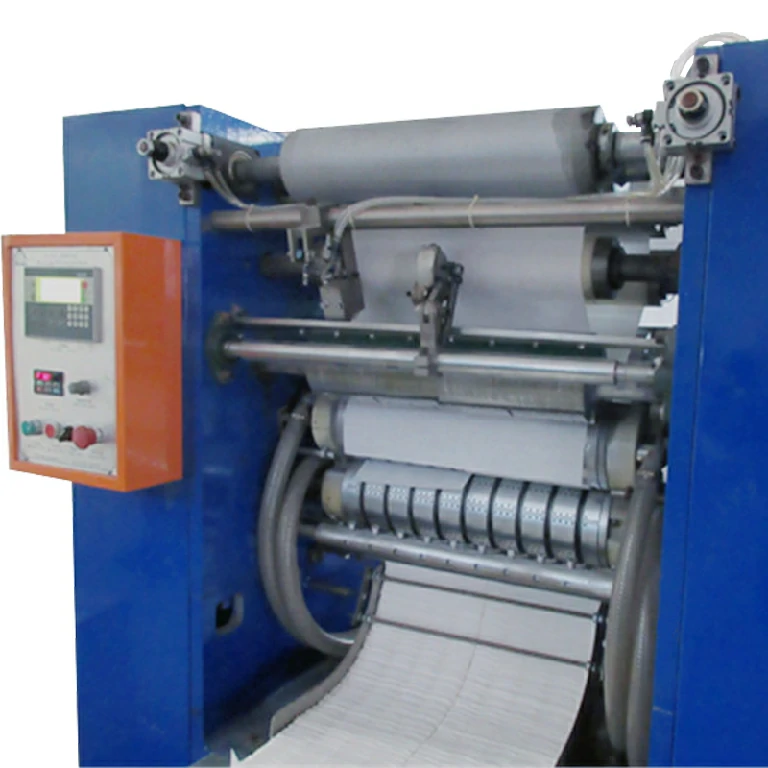

Automatic Interfold Hand Towel Machine

6-Fold Full Automatic Interfold Hand Towel Machine | HX-240/2 High-Speed Series

  • Precision 6-Fold Conversion: Produces consistent interfold towels for smooth dispenser use
  • Dual-Line High Efficiency: Approx. 600 sheets/min for stable, continuous production
  • Steel-to-Steel Embossing: Deep, durable patterns enhance bulk and brand identity
  • PLC Intelligent Control: Easy operation with accurate counting and safety features
  • Optional Glue Lamination: Improves strength and absorbency for premium 2-ply towels
  • Pneumatic Cutting System: Reduces downtime and prevents paper jams

Product Detail

Engineering & Performance Highlights

The HX-240/2 is a professional-grade solution designed to convert wet-strength tissue into precision-folded 6-fold towels. These products are ideal for high-traffic dispensers in hotels, corporate offices, and industrial kitchens, offering a smooth "one-at-a-time" user experience. While this model is specialized for high-absorbency towels, it utilizes the same high-torque drive systems found in our industrial Toilet paper roll machine series, ensuring the durability required for continuous 24/7 manufacturing environments.

Core Technical Advantages

  • Customizable Steel-to-Steel Embossing: Equipped with a pneumatic pressing system to ensure deep, consistent patterns that enhance both towel bulk and brand identity.

  • Synchronous Drive Technology: Utilizes high-precision synchronous belt transmission for accurate folding ratios, significantly reduced vibration, and whisper-quiet operation.

  • Intelligent PLC Automation: Features advanced PLC programming with electronic counting and dual-side inching switches, ensuring safe operation and easy parameter adjustment.

  • Enhanced Absorbency (Glue Lamination): Supports an optional glue lamination unit to produce premium 2-ply kitchen towels with superior structural integrity and water retention.

  • Smart Pneumatic Cutting: The auto-separation blade system prevents paper jams during stops and simplifies the threading process, minimizing machine downtime.

Technical Parameters & Performance Matrix

Parameter Technical Data
Output Configuration 2 Lines Production
Operating Speed Approx. 600 sheets/min
Unfolded Dimensions 230mm × 240mm
Finished Folded Size 230mm × 60mm (± 2mm)
Jumbo Roll Compatibility Max Width: 460mm / Max Diameter: 1200mm
Applicable Paper Weight 32-40 g/㎡
Structural Weight 2,000 kg (2 Tons)
Machine Footprint 4500mm × 1500mm × 2000mm

Automatic Interfold Hand Towel Machine

Manufacturing Excellence: About Huaxun Machinery

As a premier tissue making machine manufacturer based in Fujian, China, Huaxun Machinery specializes in the R&D and production of high-end paper converting equipment. With decades of expertise serving markets across Asia, Europe, and the Americas, we provide integrated solutions for industrial and commercial paper production.

Our reputation as a trusted multifold hand towel machine factory ensures that every machine is engineered for precision, durability, and maximum ROI for global procurement managers.
